Eleaf Melo 2 Atomizer

• Brand: Eleaf
• Unit: Set
• Net Weight: 120(g)

Combined shipping cost will be calculated automatically by the system after you choose shipping destination in the checkout step.

Register and sign in your account to get bulk discounts!

Product introduction

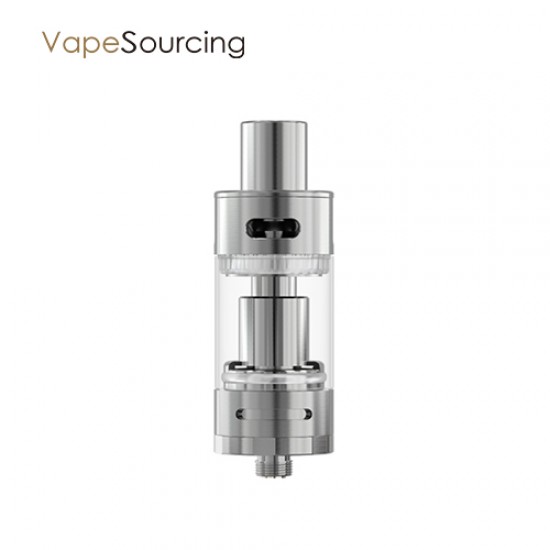

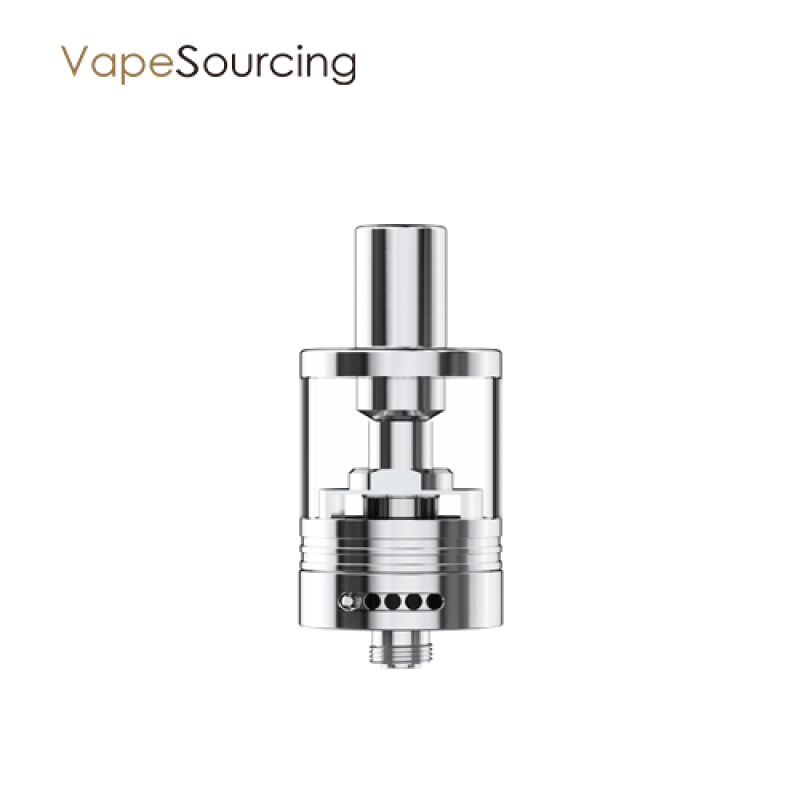

With large liquid capacity of 4.5ml, the new MELO 2 atomizer is remarkably convenient to use, mainly featuring its simple structure and side e-liquid fill hole for ease of parts cleaning and e-liquid refilling.

Parameters

Resistance: 0.5ohm(EC Ti)/ 0.15ohm(EC Ni)/ 0.3ohm(EC Head)
Diameter: 22mm
Length: 66mm
Capacity: 4.5ml

Eleaf Melo Atomizer comes with

• 1× Eleaf Melo 2 Atomizer(with EC head)
• 1× EC TC-Ni Head (0.15ohm)
• 1× EC TC-Ti Head (0.5ohm)
• 4× Sealing Ring
• 1× Silicone Ring

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Features

1. The side e-liquid fill hole is designed for ease of refilling e-liquid.

2.Optional types of EC heads–EC head and EC TC head, separately supports normal VW (Variable Wattage) device and smart TC (Temperature Control) device.


3.  It comes with large liquid capacity of 4.5ml, reducing the frequency of refilling e-liquid.

4. The amount of airflow can easily be adjusted by rotating the flexible airflow control ring on the atomizer base so as to get different vaping experiences.

5.The metal mouthpiece packs with excellent characteristic of heat insulation.

6.All the EC series atomizer heads are applied with 100% pure cotton wick.

How to add liquid

The e-liquid fill hole is located in the side of the top cap of atomizer tube. Rotate counterclockwise the regulation ring on the top cap to open the e-liquid fill hole. Then slowly refill e-liquid into the glass tube. Finally close the e-liquid fill hole by rotating clockwise the regulation ring.
Note:Please make sure the atomizer head is always tightened up.

How to replace atomizer head

1. First pull the atomizer base out of the MELO 2 atomizer;
2..Then screw off the atomizer head from the atomizer base;
3. Finally screw a new atomizer head tightly onto the atomizer base.

Package

Simple paper box. Customary Packing from the factory, the packing is subject to change without notice.
